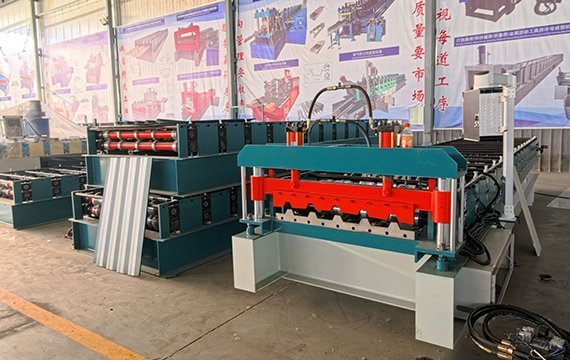

Trapezoidal Roof Sheet Machine Manufacturer
As a leading manufacturer of Trapezoidal Roof Sheet Machines, we fully understand the critical importance of precision and efficiency in the production process. Our Trapezoidal Roof Sheet Machine is meticulously engineered to deliver exceptional performance, ensuring that every roof sheet meets rigorous quality standards. Equipped with state-of-the-art technology, the machine precisely forms trapezoidal profiles, thereby providing superior structural integrity and aesthetic appeal.
A key advantage of our Trapezoidal Roof Sheet Machine lies in its versatility. It is capable of processing a wide range of materials—including galvanized steel, aluminum, and various other metal alloys—making it suitable for diverse roofing applications. The machine's robust construction and advanced features ensure long-term durability and minimal maintenance requirements, offering a cost-effective solution for roof sheet production.Our machine incorporates user-friendly controls and automation features into its design, making operation both simple and highly efficient. This not only helps reduce labor costs but also boosts production efficiency, enabling manufacturers to easily meet tight deadlines and fulfill large-scale orders.
The Trapezoidal Roof Sheet Machine is an essential piece of equipment for any roof sheet manufacturer looking to enhance their production capabilities. Its advanced technology, versatility, and high-quality output make it an invaluable asset within the roofing industry. Whether you are producing roof sheets for residential, commercial, or industrial applications, this machine delivers unparalleled efficiency and precision.
Trapezoidal Roof Sheet Machine Features

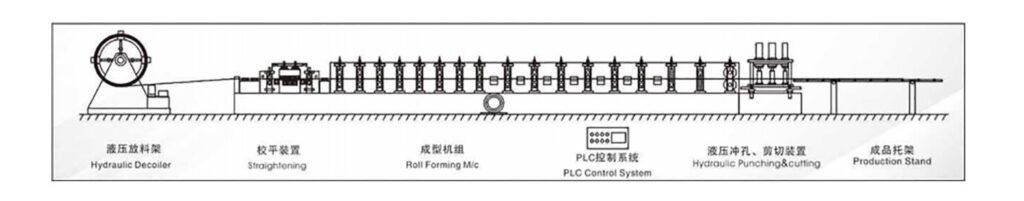

Trapezoidal Roof Sheet Machine Production Process

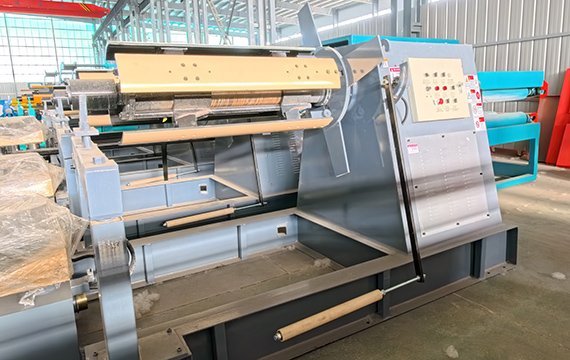

Decoiler
A manual decoiler is provided as a standard accessory; if you require an electric decoiler, we will confirm the specifications and pricing with you.

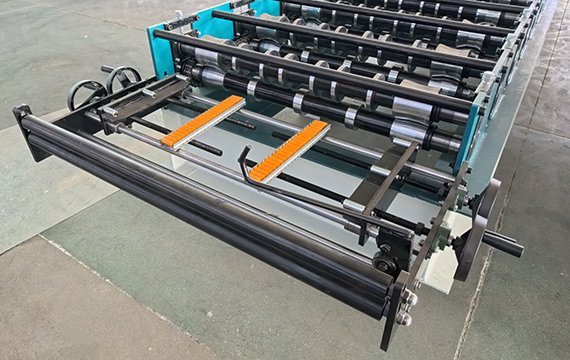

Feeding Platform
Features a generous feeding width margin, ensuring a smooth, jam-free material flow.
7-Roller Leveling
Straightens the coiled sheet into a flat plane, facilitating the subsequent forming process.

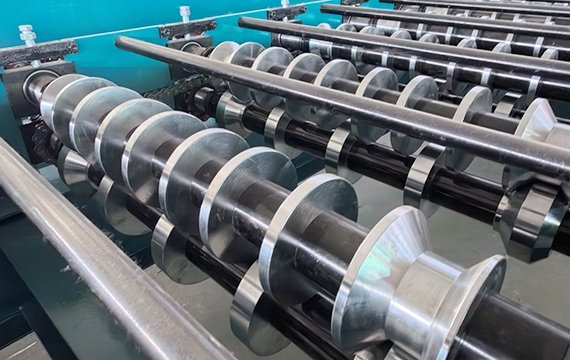

Roll Forming
The material is shaped as it passes through a series of precision-engineered rollers made from high-grade 45# steel.
Cutting
Utilizes a thickened DC53 steel cutting blade to ensure burr-free cuts and prevent edge jamming; robust and highly durable.
Discharge
Fully automated via PLC control, ensuring precise length accuracy while preventing profile deformation or edge warping.
Trapezoidal Roof Sheet Machine Key Attributes
C-Purlin Roll Forming Machine | |
Brand | YiTuo |
Base material | GI. GL. PPGl. PPGL . Aluminum |
Steel thickness | 0.8mm-1.5mm(Customized) |
Effective width | 80mm-300mm |
Machine Size | 7000*1000*1200mm |
Machine Weight | 5.2tons |
Frame Material | Square Steel |
Side Panel Of Machine | 12mm |
Rollers | 18rows |
Roller material | 45# steel Cr12 Mov HRC 58-62 |
Diameter Of The Shaft | 50mm |
Drive Mode | Chain Wheel and Cycle Chain Length:1 Inch |
Productivity | 90 feet/min |
Voltage | 380V 50Hz 3phases(Can be customized according to local voltage) |
Motor power | 5.5kw17.5KW motor |

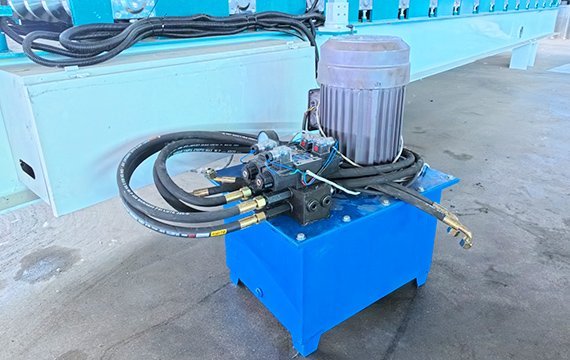

Cutting&Hydraulic | Hydraulic pump station : 4kw Regular Blade: Cr12 Mov HRC 58-62 |

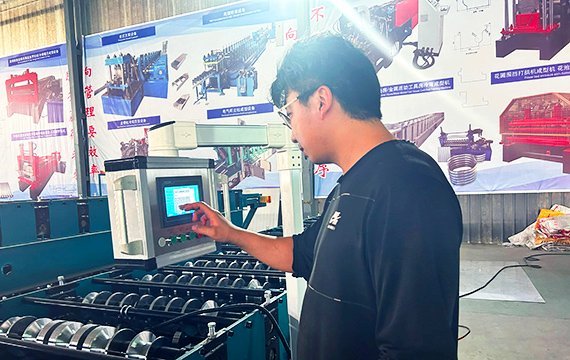

Control System | PLC Electronic control cabinet |
If you also need to produce other purlins

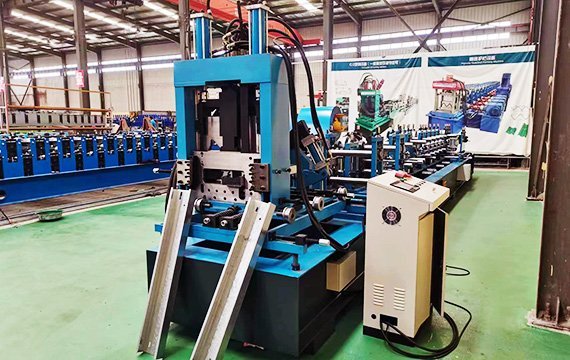

This fully automated C/Z/U-profile steel machine features rapid changeover capabilities, allowing for a complete profile switch in just one minute. Via a single-touch command on the PLC interface, the machine can instantly adjust to produce the specific profiles required by the customer; these adjustments are executed with millimeter-level precision, and the equipment maintains a high forming speed.
●A single machine is capable of simultaneously producing both C & Z purlins or C & U purlins, with the dimensions of the purlins fully controlled by the PLC system.
●Furthermore, this machine is equipped with punching capabilities, allowing for adjustable hole positioning and sizing.
●Notably, changing the purlin profile being produced does not require replacing the cutting blades.
Trapezoidal Roof Sheet Machine
Greatest Advantage
●The width of the profiles produced by this machine is infinitely adjustable, requiring no replacement of rollers or cutting blades. Saves time and labor costs, and boosts production efficiency.
●Equipped with integrated leveling and punching capabilities, the machine operates as a fully automated production line, ensuring high production efficiency and consistent product quality.

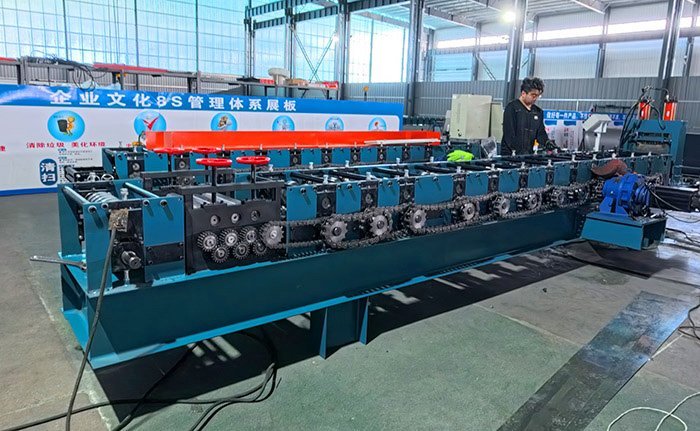

●The production speed of a C-Purlin Roll Forming Machine can reach up to 90 feet per minute—a level of efficiency that far surpasses most traditional manufacturing methods.
Why Choose Our Machines?
●With 21 years of experience in manufacturing machinery for the construction industry, we are able to produce machines of consistent and reliable quality for you. Even under high-intensity operating conditions, our machines maintain their superior performance.
●Backed by stable production capabilities and established supply chain relationships—combined with a team of highly skilled engineers who continuously master the latest technologies—we guarantee the quality of our machinery.
●We offer flexible OEM/ODM customization services to meet your diverse requirements.
●Our machines have been exported to over 100 countries and regions worldwide.
Trapezoidal Roof Sheet Machine Specifications
The following are common standard specifications for C-purlins. In addition to these, we can customize any specifications you require; please send us your drawings or let us know your specific needs.
Customize Now

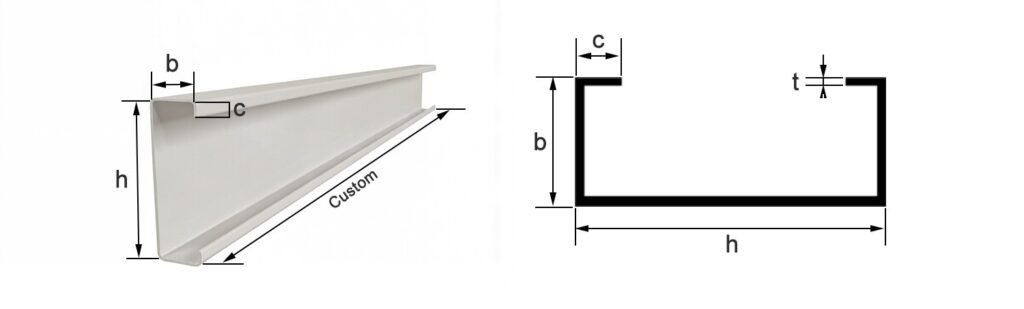

Model | Section Size (mm) | Holes Distance(mm) | |||
h | b | C | t | ||
C80 | 80 | 40 | 15 | 2.0-3.0 | —— |
C100 | 100 | 50 | 20 | 2.0-3.0 | 40 |
C120 | 120 | 50 | 20 | 2.0-3.0 | Adjustable |
C140 | 140 | 50 | 20 | 2.0-3.0 | Adjustable |
C160 | 160 | 60 | 20 | 2.0-3.0 | Adjustable |
C180 | 180 | 60 | 20 | 2.0-3.0 | Adjustable |
C200 | 200 | 60 | 20 | 2.0-3.0 | Adjustable |
C220 | 220 | 70 | 20 | 2.0-3.0 | Adjustable |
C250 | 250 | 70 | 20 | 2.0-3.0 | Adjustable |
C300 | 300 | 80 | 20 | 2.0-3.0 | Adjustable |
Trapezoidal Roof Sheet Specifications
Industrial buildings Hall and warehouse construction Expansion and renovation projects Agricultural projects
Why Choose YiTuo?
Global Leader in the Roll Forming Industry
We approach every detail—from raw materials to final delivery—with the utmost diligence and responsibility. It is precisely because of the superior quality of our machinery and our attentive service that our clients are able to obtain the high-quality profiles they seek. We remain steadfastly committed to upholding the highest standards of machine quality while simultaneously helping our clients reduce costs, thereby enhancing the market competitiveness of their products.
Ships in 35 days.
We possess mature manufacturing technologies and a stable production system. Under normal circumstances, we can deliver equipment within 35 days; furthermore, we offer a one-year warranty and lifetime after-sales support, allowing you to place your order with complete peace of mind.
